In-Motion Parcel Weighing & DWS Integration
MIQI builds the dynamic weighing and conveyor section used in parcel verification and DWS integration projects. The MQ-CW6055L5 handles light parcels from 1 g to 5 kg at ±1-5 g; the MQ-CW12080S60 covers 1-60 kg at ±10-20 g on a 1,200 × 800 mm platform; and the dual-platform MQ-CWS90100L50 covers 200 g-50 kg at ±50 g for mixed parcel lengths. Belt speed is adjustable from 5 to 120 m/min. Barcode reading, real-time printing, inline labeling, inkjet coding and sorting can be configured for the project. Length-width-height measurement requires a separate dimensioner; MIQI can discuss interface integration, but the three machines listed here are weighing systems rather than standalone parcel dimensioners.
An in-motion parcel weighing system captures actual weight while a carton or polybag continues along a conveyor. A complete DWS system adds two separate functions: a dimensioner for length, width and height, and a scanner for parcel identity. MIQI supplies the dynamic scale and conveyor-control core, with optional scan, print, label and sort functions. This distinction matters when specifying a project: a parcel scale verifies mass; a dimensioner measures volume; DWS combines dimensioning, weighing and scanning in one data record.
In-Motion Parcel Weighing Models
High-Speed High-Precision Automatic Weighing Machine
- Weighing range: 1-5000g
- Weighing accuracy: ±1-5g
High-Speed Logistics Scale
- Weighing range: 1-60kg
- Weighing accuracy: ±10-20g

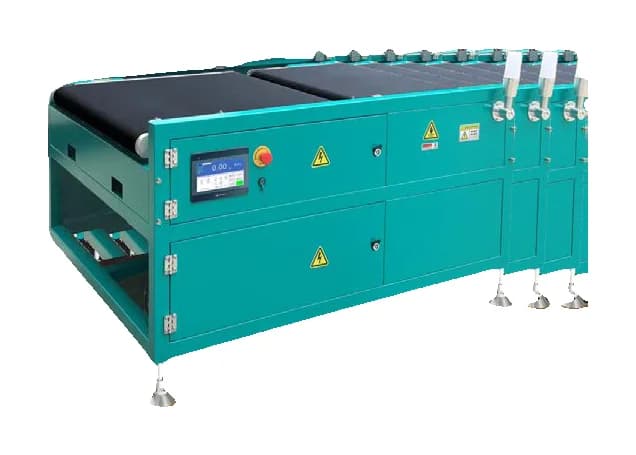

High-Speed Logistics Scale (Dual-Platform)
- Weighing range: 200g-50kg
- Weighing accuracy: ±50g
Parcel Weighing Model Comparison
| Model | Weighing Range | Accuracy | Max Belt Speed | Platform Size |
|---|---|---|---|---|
| MQ-CW6055L5 | 1-5000 g | ±1-5 g | 120 m/min | L 600 × W 550 mm |
| MQ-CW12080S60 | 1-60 kg | ±10-20 g | 120 m/min | L 1200 × W 800 mm |
| MQ-CWS90100L50 | 200 g-50 kg | ±50 g | 120 m/min | Dual platform: L 900 + L 600 × W 1000 mm |
In-Motion Parcel Weighing & DWS Integration: Working Principle
Parcel Weighing System Price Factors
Parcel weighing system price is project-specific. The main cost drivers are platform size, maximum parcel weight, required accuracy at the real conveyor speed, parcel spacing, reject or sorting method, barcode and printer hardware, and the interface to the customer WMS or carrier software. A DWS integration that also measures length, width and height requires a compatible third-party dimensioner and commissioning scope. MIQI therefore quotes against a parcel sample list, throughput target and interface description rather than publishing a configuration that may not match the line.
Parcel Weight, Dimensioning and DWS Scope
What Is Dimensioning?
Dimensioning measures a parcel’s length, width and height. A dimension scanner or parcel measurement device is separate from the in-motion scale that captures actual mass.
Parcel Dimensioning System Boundary
A parcel dimensioning system or automated DWS cell combines a dimensioner, dynamic scale and barcode scanner. MIQI documents the weighing conveyor and integration options; a compatible third-party dimensioner must be separately specified.
In-Motion Parcel Weight Verification
Dynamic parcel weighing can compare measured mass with the expected order or shipping record, then send a no-match parcel to review. Accuracy and tracking are verified with real parcel sizes, gaps and speed.
Parcel Weighing Applications
Express and parcel hubs
In-motion parcel weight is linked to the barcode record for routing, exception handling or downstream billing logic, without stopping the conveyor for manual weighing.
E-commerce fulfilment
Actual parcel weight can be compared with the expected order weight to flag missing, extra or incorrect items before dispatch.
3PL and warehouse shipping
A parcel weigh-scan workflow creates a traceable shipment record and can pass results to a WMS through the agreed project interface.
Cross-border consolidation
Dynamic carton weighing replaces repeated manual scale handling and supports print, label or sort options after the weight decision.
Factory finished-goods dispatch
Shipping cartons are checked for completeness at the end of packing, with out-of-tolerance parcels directed to a review lane.
Related Conveyor Systems
Buyer Guides & Engineering Answers
Frequently Asked Questions
What is the difference between a parcel scale and a DWS system?+
A parcel scale measures actual weight. A DWS system records dimensioning, weighing and scanning together: a dimensioner measures length, width and height, a scale measures mass, and a barcode reader identifies the parcel. MIQI supplies the in-motion weighing and conveyor-control core shown on this page. If dimensions are required, the project must include a separate compatible dimensioner.
Can MIQI integrate a parcel scale with barcode scanning and a WMS?+
Barcode reading, real-time printing, inline labeling, coding and sorting are available as project options on the documented logistics models. The interface protocol, data fields and WMS responsibilities must be agreed before manufacture. Send a sample barcode, desired output record and line-control description for an engineering review.
How accurate is in-motion parcel weighing?+
Accuracy depends on the model, weight range, parcel length, spacing, belt speed and vibration. The documented ranges are ±1-5 g for MQ-CW6055L5, ±10-20 g for MQ-CW12080S60 and ±50 g for MQ-CWS90100L50. Final selection should be confirmed by testing representative parcels at the intended operating speed.
Which model fits a 60 kg shipping carton?+
MQ-CW12080S60 is the documented 1-60 kg model with a 1,200 × 800 mm weighing platform and ±10-20 g stated accuracy. Parcel footprint, centre of gravity, conveyor transfer and line speed still need to be checked before quotation.
Can these machines measure dimensional weight?+
Not by themselves. They measure actual weight. Dimensional weight needs length, width and height from a separate dimensioner plus the customer or carrier divisor rule. MIQI can discuss how the weighing conveyor exchanges data with that external device, but does not present the listed scales as standalone dimensioners.
